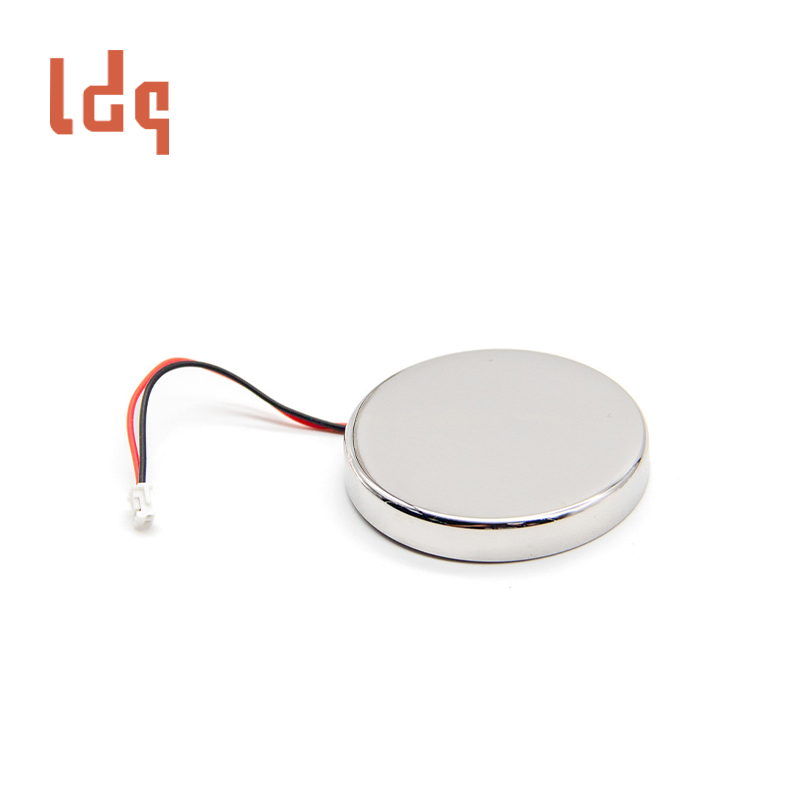

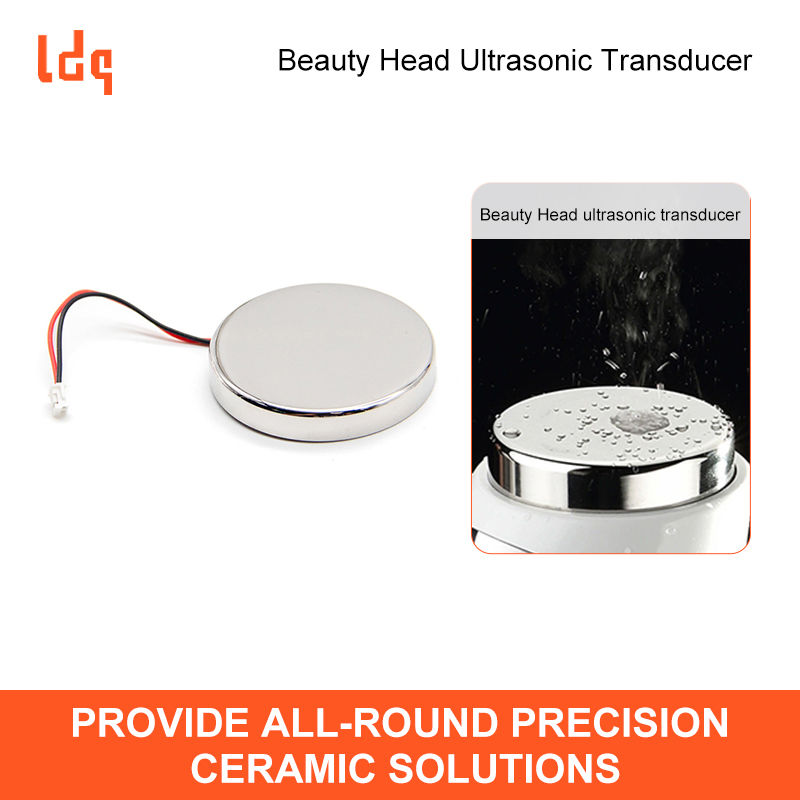

Transdutor ultrassônico de cabeça de beleza

Quantidade de pedido mínimo:1

Embalagem & Entrega



Transdutor para equipamentos de beleza



O transdutor ultrassônico da cabeça de beleza é um transdutor piezocerâmico de alto desempenho projetado para aplicações modernas de transdutor de instrumentos de beleza. Este produto é cuidadosamente fabricado pela Shenzhen Liandaqi Precision Ceramics Co., Ltd., usando materiais cerâmicos piezoelétricos de alta qualidade e tecnologia de precisão para garantir um excelente desempenho e estabilidade.

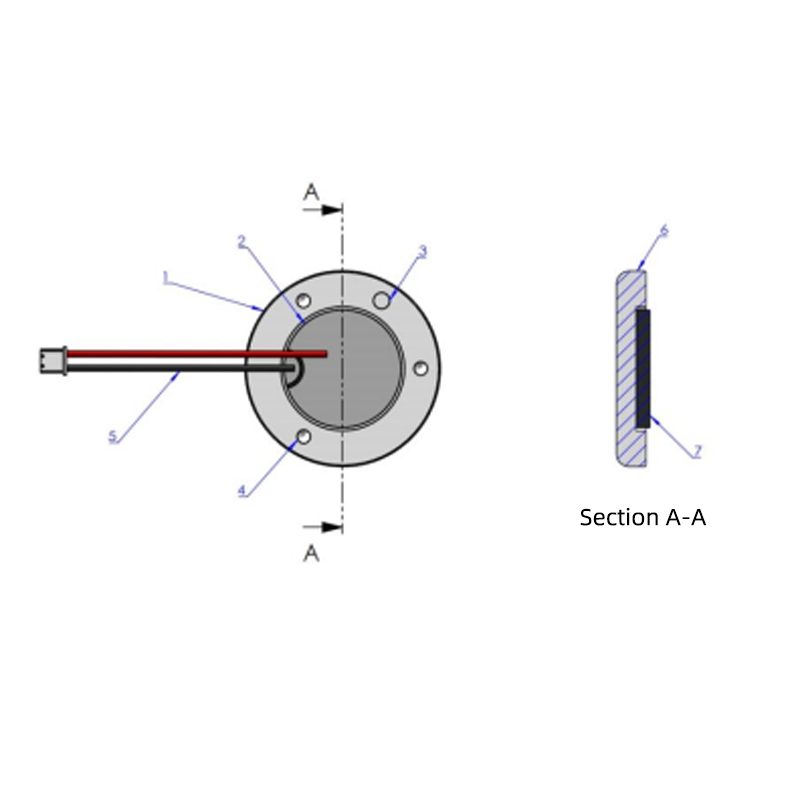

Piezoceramic Transducer Product Specifications

Metal seat diameter: Φ30±0.1mm
Piezoelectric ceramic diameter: Φ18±0.3mm
Positioning hole: Φ2.5mm
Fixed hole: M2.5*3
Wire specification: 1571#28 red and black wire, length 80±5mm
Metal seat thickness: 4.5±0.1mm
Overall thickness: 5±0.3mm

Beauty instrument transducer Features

Precision piezoelectric ceramic technology: using high-quality piezoceramic transducer core with a diameter of 18mm, resonant frequency 1MHz±0.3MHz
Efficient energy conversion: resonant impedance ≤300Ω, capacitance 1200PF±15%, ensuring efficient energy conversion
Durable: designed life of about 1000 hours, metal seat is made of SUS304 stainless steel
Precise size: piezoelectric ceramic diameter Φ18±0.3mm, metal seat diameter Φ30±0.1mm

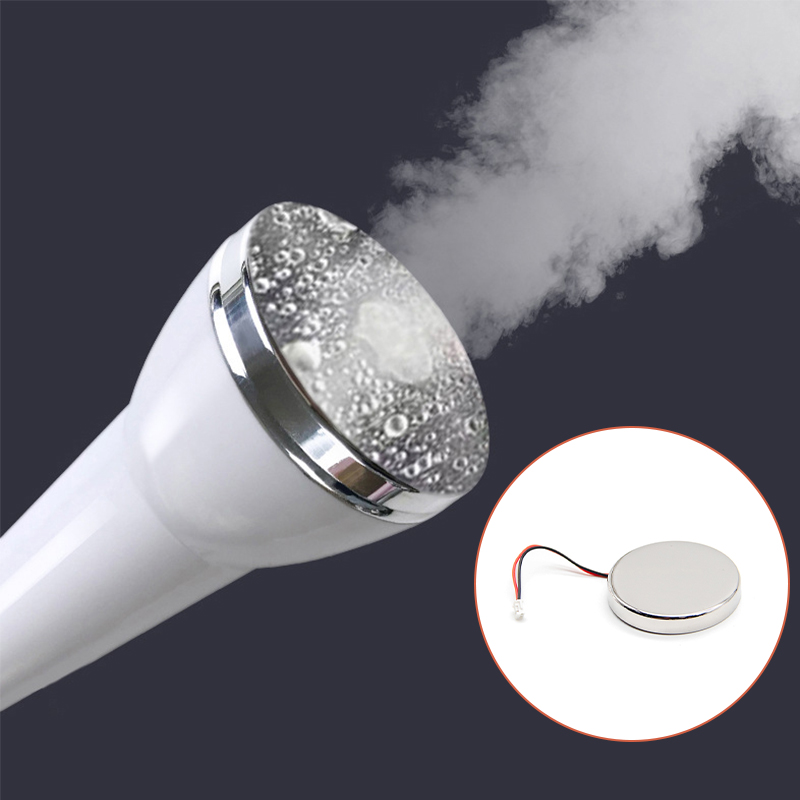

Beauty Head Ultrasonic Transducer Industry Applications

Ultrasonic cleanser: deep cleans pores, removes blackheads, oil and cosmetic residues
Ultrasonic infusion device: enhances the penetration of skin care products and improves the absorption efficiency of nutrients such as essences and masks
Firming and lifting beauty device: stimulates collagen regeneration through high-frequency vibration, improves skin sagging and fine lines
Ultrasonic massager: promotes facial blood circulation, relieves edema, and improves contours
Humidifier transducer
