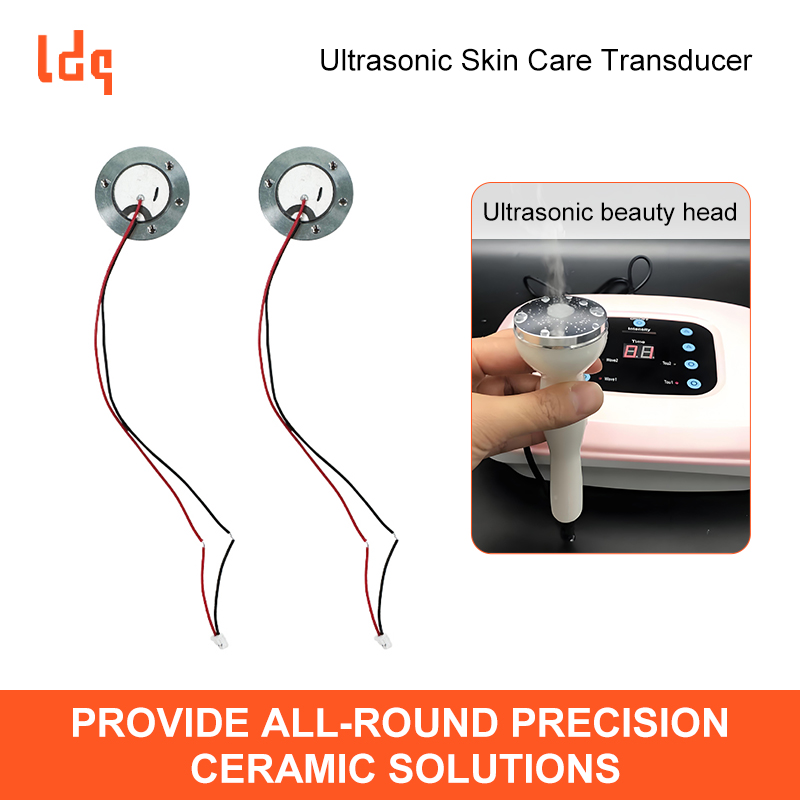

Transdutor de cuidados com a pele ultrassônica

Quantidade de pedido mínimo:1

Embalagem & Entrega



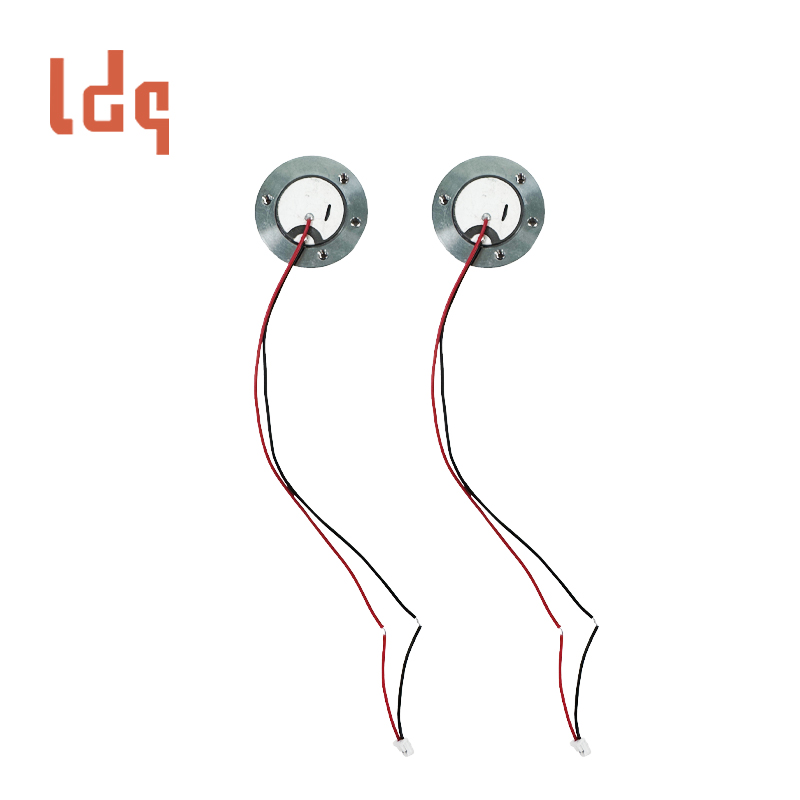

Transdutor ultrassônico para cabeça de beleza



O transdutor de cuidados com a pele ultrassônico possui as características de alta precisão, alta estabilidade, vida longa etc. Pode gerar eficientemente vibrações ultrassônicas e é amplamente utilizado em cuidados com a pele, cuidados médicos e outros campos. Seu excelente desempenho e qualidade confiável o tornam a escolha ideal para os fabricantes de instrumentos de beleza.

Piezoceramic Transducer Product Specifications

Metal seat diameter: Φ30±0.1mm
Piezoelectric ceramic diameter: Φ18±0.3mm
Positioning hole: Φ2.5mm
Fixed hole: M2.5*3
Wire specification: 1571#28 red and black wire, length 80±5mm
Metal seat thickness: 4.5±0.1mm
Overall thickness: 5±0.3mm

Beauty instrument transducer Features

High-precision piezoelectric ceramics (Φ18±0.3mm) ensure stable output of ultrasonic vibration.
304 stainless steel metal seat (Φ30±0.1mm) is corrosion-resistant and anti-oxidation, extending service life.
Optimized resonant frequency (1±0.3MHz) provides efficient energy conversion and reduces energy loss.
Resonant impedance ≤300Ω ensures low power operation, reduces heat generation, and improves equipment energy efficiency.
Capacitance value 1200±15% PF (1KHZ, 1Vrms test) ensures stable signal transmission and avoids distortion.

Ultrasonic Skin Care Transducer Industry Applications

Deep cleansing: high-frequency vibration generates microbubbles to loosen the oil and dirt in the pores.
Nutrition introduction: enhance skin permeability and assist the absorption of essences, masks and other ingredients.
Lymphatic detoxification: low-frequency vibration promotes blood circulation and relieves edema.

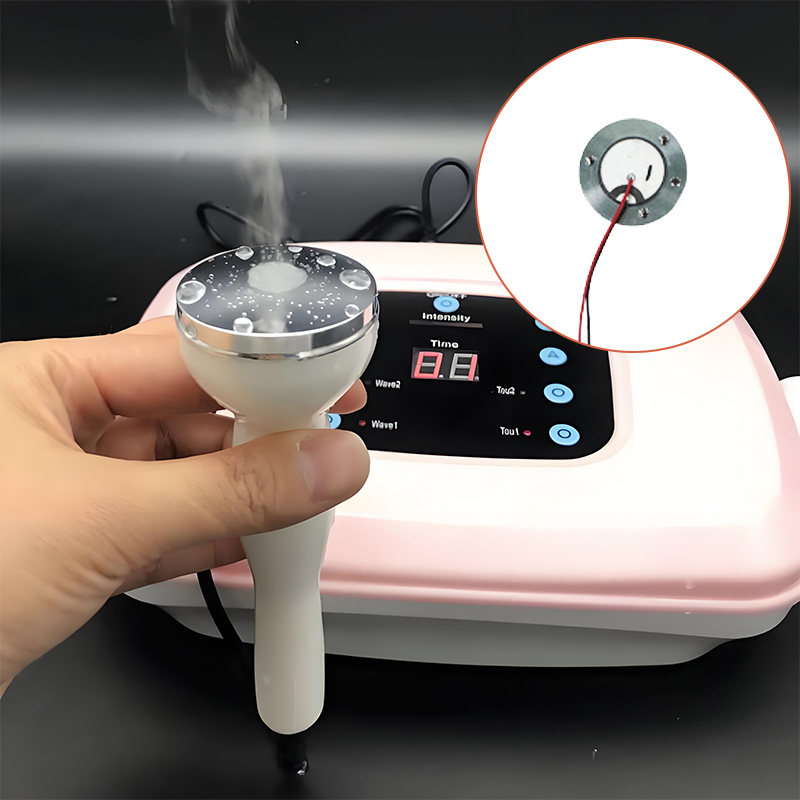

Typical instruments: ultrasonic cleansing instrument, import and export instrument.
