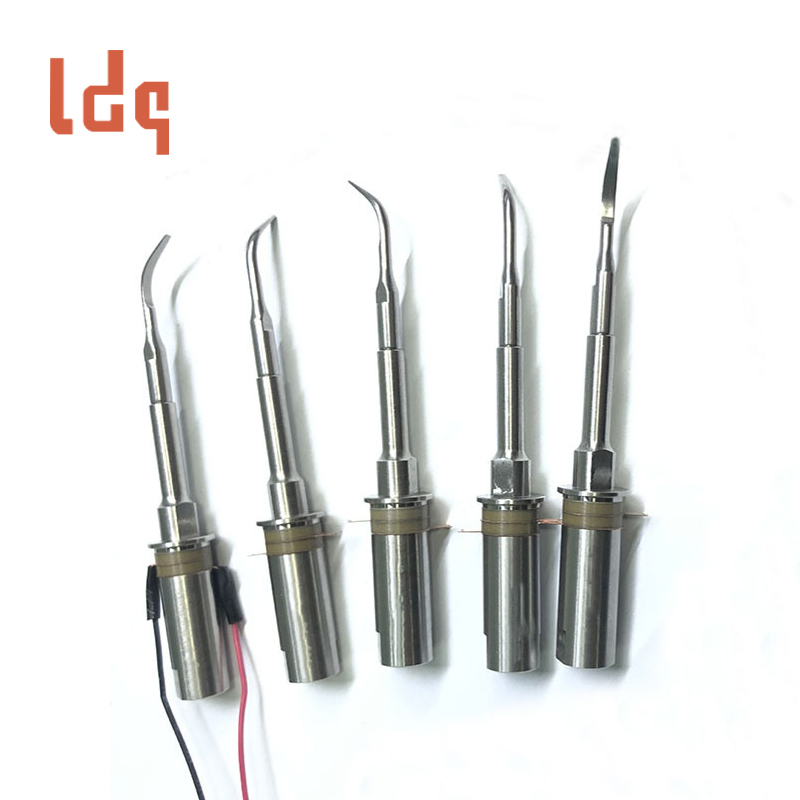

Inserções de escalador dental ultrassônico

Quantidade de pedido mínimo:1

Embalagem & Entrega



Cabeça de máquina de limpeza de dente



As inserções de escalador dental ultrassônico usam tecnologia de vibração de alta frequência de 37 ± 1kHz e lâmina de precisão de 2,3 mm para obter precisão de limpeza em nível de mícrons. 304/116L Material de aço inoxidável médico garante uma operação segura e confiável todas as vezes.

Tooth cleaning machine head Product Specifications

Rear cover length: 24.5±0.5
Piezoelectric sheet thickness: 4±0.5
Amplitude rod length: 23±0.5
Tool length: 25.5+0.3
Rear cover diameter: 10±0.1
Limiting diameter: 8±0.1
Tool rod diameter: 4±0.1
Wrench position: 3±0.2
Tool tip diameter: 2.3±0.1
Wire 1571#28 red and black: L=80±3/1.25 terminal

Tooth cleaning machine tool Features

37±1KHz resonant frequency design ensures accurate and stable tooth cleaning vibration
≤500Ω low resonant impedance, energy conversion efficiency of more than 92%
Working voltage 90Vpp(max), stable and controllable power output
The blade is made of medical grade 304/316L stainless steel (in accordance with ISO 7153-1 standard)
SUS303 transducer substrate, vacuum heat treatment process
Key component tolerance is controlled within ±0.1mm

Ultrasonic Dental Scaler Inserts Industry Applications

Periodontal treatment specialty applications
Implantation and restoration fields
Special clinical scenarios
Auxiliary diagnosis and treatment applications
Professional extension applications
